CUSTOMER NEED: 2 story home, customer needs a new high efficiency system and needs to heat and cool the upstairs which did not have ductwork.
LOCATION: Scripps Ranch, San Diego County
PROPOSED SOLUTION: Change out Furnace, AC and add a Multi Zone heat pump mini split. Replace existing equipment for the downstairs, and add a multi zone for the rooms upstairs. They also wanted individual controls for the upstairs rooms.
JOB DETAILS: Down below
CUSTOMER COMMENTS: “The team at Carini has been nothing but helpful, from the people answering the phone, to the design specialist that came out, and especially the install crew. I was shopping around with a few companies and Carini wasn’t the cheapest, but they were the most professional. Our old system was inefficient and made a lot of noise. It needed to be changed out for a while, but once I heard of the California rebate, I knew I couldn’t wait. Overall I am very happy with my new system, the Carini team, and the peace of mind they offer with their 12 year warranty” – J.P.
Item List
American Standard – Mitsubishi Electric
NAXSST24A112A (MUZ-GL) Heat Pump
- 24,000 BTUs Cooling
- 27,600 BTUs Heating
- 20.5 SEER, 12.5 EER, 10 HSPF
- 12 Year Parts Warranty
- 12 Year Labor Warranty
- 12 Year Compressor Warranty
Indoor Unit Selections
Living Room
- Wall-Mounted
- NAXWST24A112A (MSZ-GL)
- 23,560 BTUs Cooling
- 27,542 BTUs Heating
3/4″ Whip qty: 1
Condenser Pad qty: 1
Electrical Disconnect w/Fuses
qty: 1
High Voltage Electrical
Circuit
qty: 1
Wireless Interface
(Kumo)
qty: 1
Condensate drains
Refrigeration Linesets with 3/4″
Insulation
UV wrap to protect Linesets
Rock well for Condensate
Low voltage wiring
American Standard – Mitsubishi Electric
NTXMMX24A132AB (MXZ NA2) Heat
Pump
- 24,000 BTUs Cooling
- 25,000 BTUs Heating
- 20 SEER, 13.6 EER, 9.8 HSPF
- 12 Year Parts Warranty
- 12 Year Labor Warranty
- 12 Year Compressor Warranty
Indoor Unit Selections
Family Room
- Wall-Mounted
- MSZ-EF18NAB White (MSZ-EF)
- 14,153 BTUs Cooling
- 15,867 BTUs Heating
Office
- Wall-Mounted
- MSZ-EF09NAB White (MSZ-EF)
- 7,500 BTUs Cooling
- 8,100 BTUs Heating
3/4″ Whip qty: 1
Condenser Pad qty: 1
Electrical Disconnect w/
Fuses
qty: 1
Wireless Interface
(Kumo)
qty: 2
Condensate drains
Refrigeration Linesets with 3/4″
Insulation
UV wrap to protect Linesets
Rock well for Condensate
Low voltage wiring

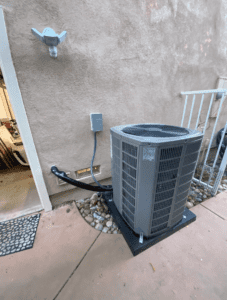

American Standard Platinum 18
4A6V8036A1000B Heat Pump
- 36,000 BTUs
- 18 SEER, 12.2 EER, 9.6 HSPF
- 10 Year Parts Warranty
- 10 Year* Labor Warranty
- 12 Year Compressor Warranty
American Standard Modular Blower
P0V0B000M40SAA Air Handler
- 10 Year Parts Warranty
- 10 Year* Labor Warranty
American Standard 4TXCB004DS3HCA
Indoor Unit (Coil)
AHRI # 205962624
Notes
- This system describes a variable speed heat pump system. This system is specifically designed for gas furnace to Heat pump conversion. All ductwork replacement is included. This system has the capability to add a zoning system that will allow each room upstairs to have it’s own control.
Condenser Pad qty: 1
Electrical Disconnect w/
Fuses
qty: 1
Existing Line Set Flush qty: 1
Install New R8 Return
Duct
qty: 1
Install New R8 Supply
Ducts
qty: 8
Install Return Grill/s qty: 1
Secondary Drain Pan qty: 1
Condensate drains
Refrigeration Linesets with 3/4″
Insulation
Seal Ducting & Grills for HERS
UV wrap to protect Linesets
Low voltage wiring
Seal Return Cavity
Refrigeration flush to existing Lineset
